Landscape Overview page

All objects in scope of CPI and Api Management composite landscapes can be browsed on Landscape Overview page.

  1. Go to Change Tracking Tool → Landscape Overview page

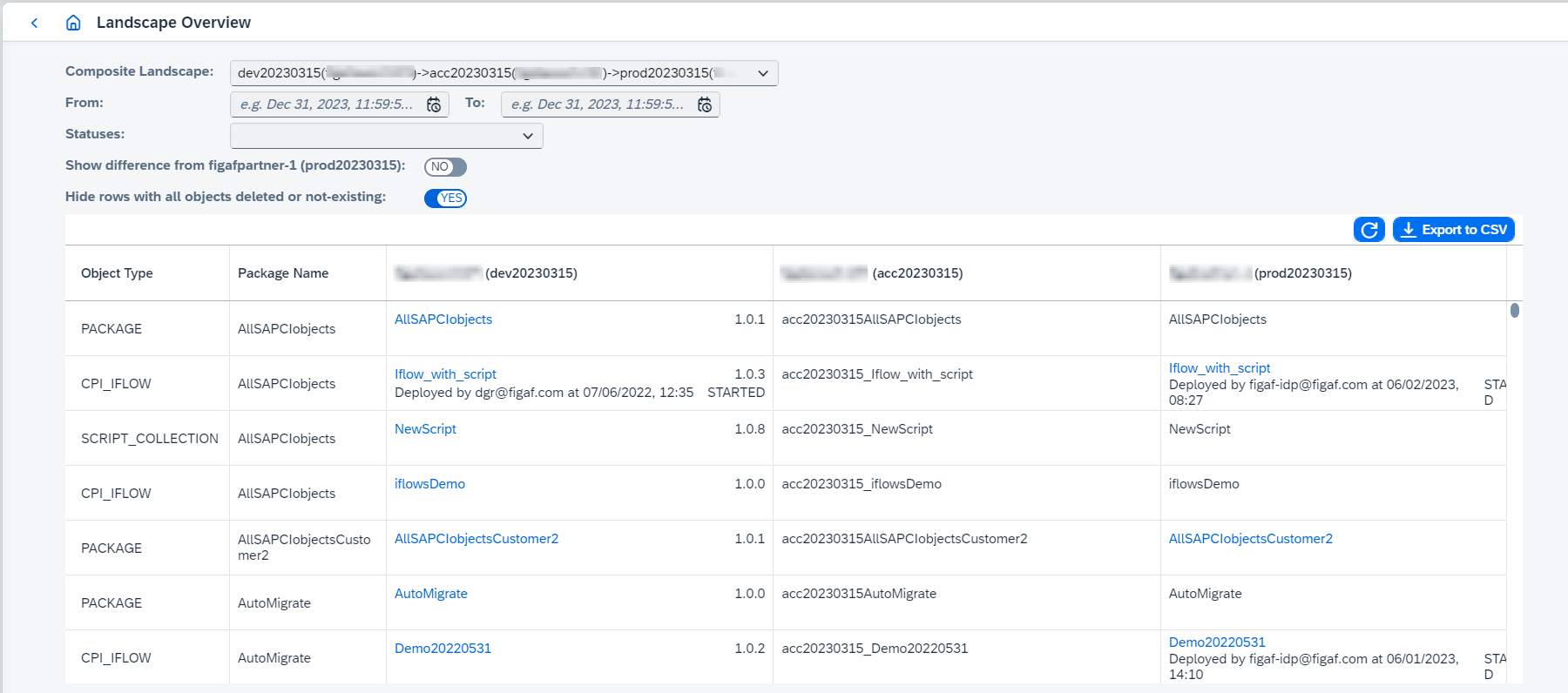

  2. Select CPI or Api Management composite landscape. Table with objects through the composite landscape will be shown:

    landscape overview page
    deleted object is an object marked as deleted in CTT.

  3. The following features are available:

    1. (Only for CPI) Include Partner Directory loads partner directory objects as well.

    2. (Only for CPI) Parameters report generates configuration parameters report for all IFlows or selected IFlows.

    3. Export to CSV generates CSV report with the table data.

    4. Compare versions clicking on check full. Then select objects for comparison and compare objects.

    5. Show difference from target system - if true, only the iflows that have different version with target object are shown.

    6. Go to tracked object page clicking on the object link.

    7. Go to corresponding transport configuration page for objects with transport configuration clicking on the object link and selecting related option.

    8. Filter by DevOps ticket(s) to show only the tracked objects attached to the selected tickets.

    9. Batch deploy/undeploy of IFlows and non-IFlow artifacts, clicking on menu and clicking on Deploy/Undeploy.

      Since 2604, non-IFlow artifacts (Value Mappings, Script Collections, Message Mappings, Function Libraries, Imported Archives) are deployed only to runtimes resolved from their linked parent IFlows by default. If a non-IFlow artifact has no parent IFlows linked, it will be skipped.

      Deployment process can be initiated with various configurations:

      • Deploy missing dependent artifacts configures whether undeployed dependent objects of selected IFlows should be deployed or not. Supported dependent objects types are Message Mappings, Script Collections, Imported Archives and Function libraries.

      • Process dependent artifacts forcibly configures whether deployed dependent objects of selected IFlows should be redeployed or not.

      • Deploy non-IFlow artifacts to chosen runtime (only for Integration Suite tenants) configures additional runtime to deploy non-IFlow artifacts (Value Mappings, Script Collections, etc.). When enabled, a Runtime selector becomes visible and the chosen runtime is used in addition to the runtimes resolved from parent IFlows.

The Landscape Overview can also be opened pre-filtered from other pages:

  • from the B2B Scenarios overview - select one or more scenarios, click Landscape Overview and pick a composite landscape assigned to the agent;

  • from a tracked object - use the Landscape Overview action (hidden for object types not shown on the Landscape Overview);

  • from the DevOps Tickets list - select tickets and click Landscape Overview.
