Test Suite Run page

Test Suite Run page opens a historical test suite run and browse related test runs:

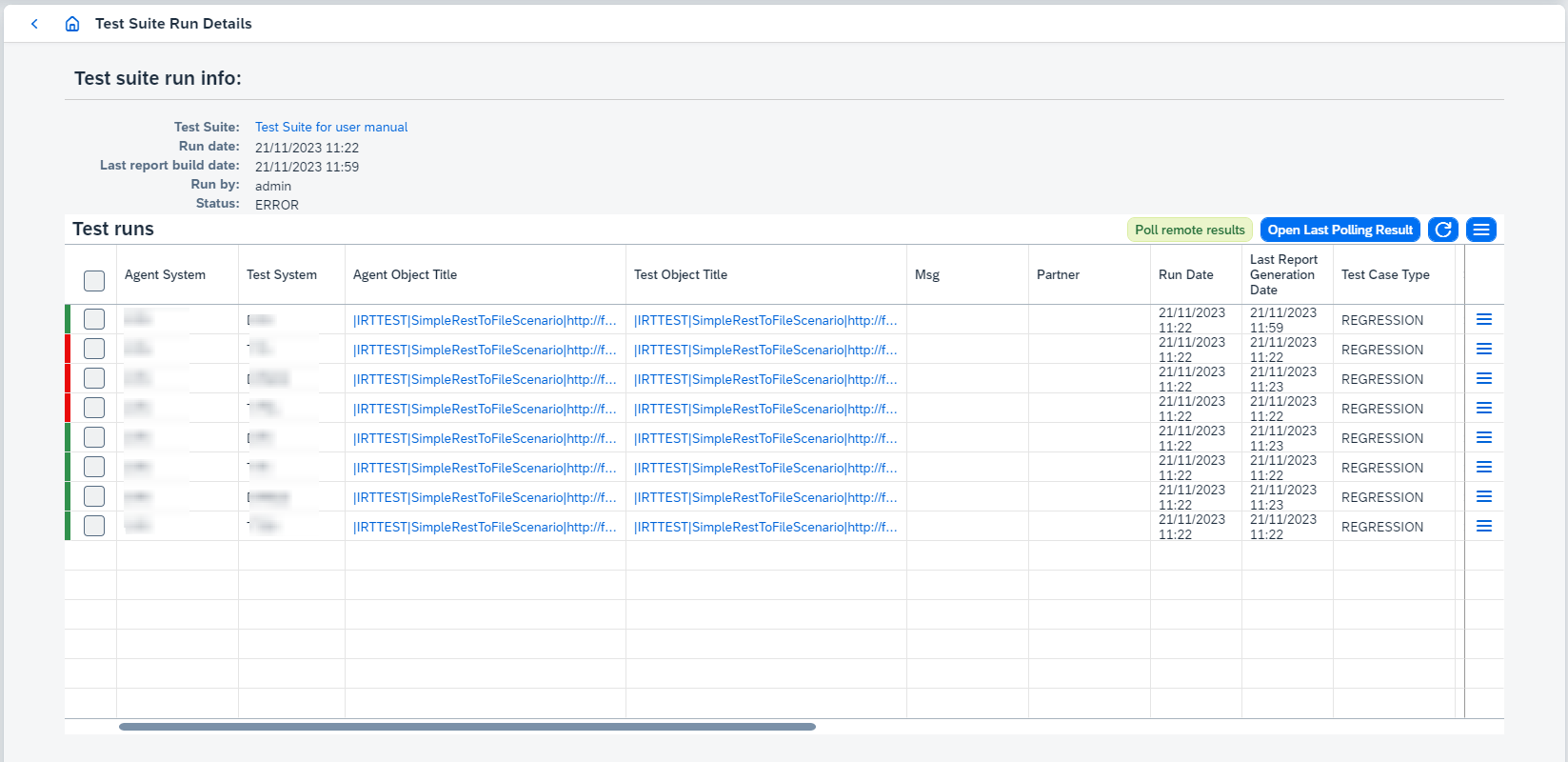

ts run page

On this page you can:

  1. View linked test suite. It opens Test Suite page.

  2. Work with test runs:

    1. View Agent and Test Objects clicking on Agent Object Title or Test Object Title. It opens Integration Object Details page.

    2. Poll remote results clicking on Poll remote results.

      Since Figaf Tool 2.15 automatic polling is added for SAP CPI Agents. Once the messages have been run successfully, automatic polling is started.

      Since Figaf Tool 2.15.2 active polling statistics can be viewed. If there is polling in progress for the integration objects and you open another poll remote data dialog, then

      • recordings/test runs which are in both polling requests will be marked as SKIPPED_AS_DUPLICATE and statistics will be copied from original item and shown on UI in the new one.

      • recordings/test runs which are not in the original polling request will be SKIPPED in the new one.

      Since Figaf Tool 2305 polling will not be started if there is already a started polling requests with same objects in progress or polling has been already completed for all selected objects.

      If you have polled almost all messages and you just need to poll small number of messages to finish testing, you can enable option Ignore messages cache during polling on Application configuration page. When this option is enabled, already polled messages won’t be skipped. It affects performance when the amount of messages is large and you just need to poll small number to finish testing.

    3. View last polling result clicking on Open Last Polling Result.

      Open Last Polling Result button is available after polling remote data and until page is refreshed.

    4. Do the following actions clicking on menu and choosing corresponding option:

      1. Rerun reruns required test case.

      2. View testcase opens 'Test Case Details' page.

      3. Download report.

        Report type can be one of 2 types:

        1. xlsx report:

          • Contains information about test run/test suite run results.

          • By default only failed results are added to xlsx report. If you want to change this behavior, go to Configuration → Application page and enable Show successful messages in the test suite’s report property.

        2. zip archive with 3 csv reports:

          • test-run-metadata.csv - contains common information about test run/test suite run (e.g. test object, counters for success/error/unexpected/not/compared/unfinished test run/test suite run results).

          • diff-report.csv - contains diff report for test run/test suite run.

          • processed-messages-report.csv - contains processed messages report for test run/test suite run.

        The report type is defined from Use bundled CSV report generation strategy property configured on Application configuration page. If it’s true, the report type is zip, otherwise, it’s xlsx.

      4. View results opens Test Run Details page.

  3. Menu options:

    1. Compare results for selected test runs.

    2. Open Used Mapping Configuration opens used mapping configuration.

    3. Test suite run report downloads test suite run report.

      Report type can be one of 2 types:

      1. xlsx report:

        • Contains information about test run/test suite run results.

        • By default only failed results are added to xlsx report. If you want to change this behavior, go to Configuration → Application page and enable Show successful messages in the test suite’s report property.

      2. zip archive with 3 csv reports:

        • test-run-metadata.csv - contains common information about test run/test suite run (e.g. test object, counters for success/error/unexpected/not/compared/unfinished test run/test suite run results).

        • diff-report.csv - contains diff report for test run/test suite run.

        • processed-messages-report.csv - contains processed messages report for test run/test suite run.

      The report type is defined from Use bundled CSV report generation strategy property configured on Application configuration page. If it’s true, the report type is zip, otherwise, it’s xlsx.

    4. Export to CSV downloads test runs CSV report.

    5. Extract related source data as a test case copies message groups related to filtered (not successful or not compared) test run results from all test runs to the new test case.

    6. Rerun reruns selected test runs.
