DevOps tutorials and samples

1. E2e development flow (PRO)

In this section we describe e2e development flow for PRO systems.

At the moment external receiver rules aren’t supported at all, as a result we can’t remove/add a routing rule to receiver rule defined externally. As a consequence, at the moment any use case that requires any modification of external receiver rule won’t work.

Recommended workaround is to process transport without changelist activation, takeover changelist and manually add receiver rule to the same changelist and update it there (also manually).

Go to Configuration → Landscapes page.

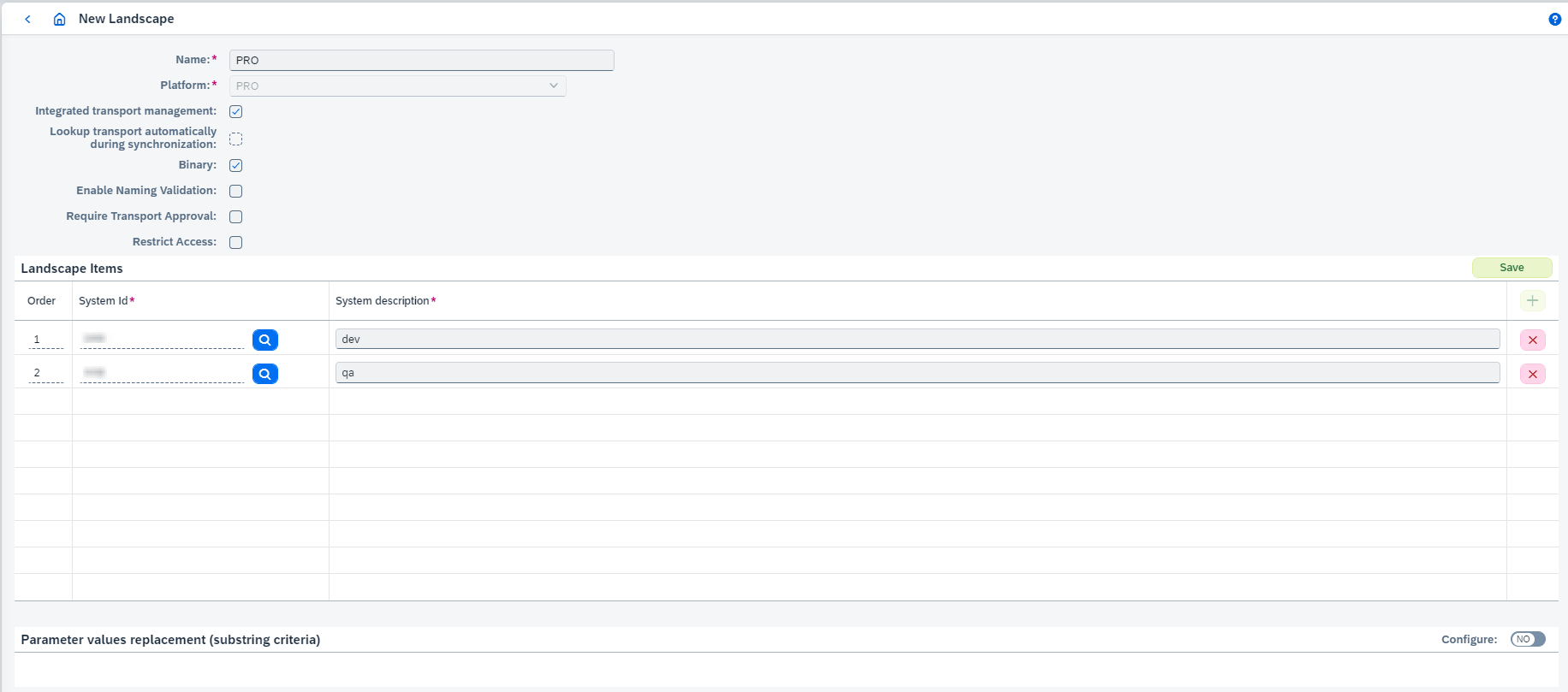

Create a landscape. Configure Name, Platform, and Landscape items, e.g.:
Synchronize source system (in our example it’s D75 - dev).
Go to DevOps → Tickets page.
Create new development ticket with created landscape. It creates new ticket and opens its page.
Go to Tracked Objects tab.
Click on Attach Tracked Objects and select Integrated Directory and/or Repository objects.
Select attached objects and click on Attach all dependent objects.

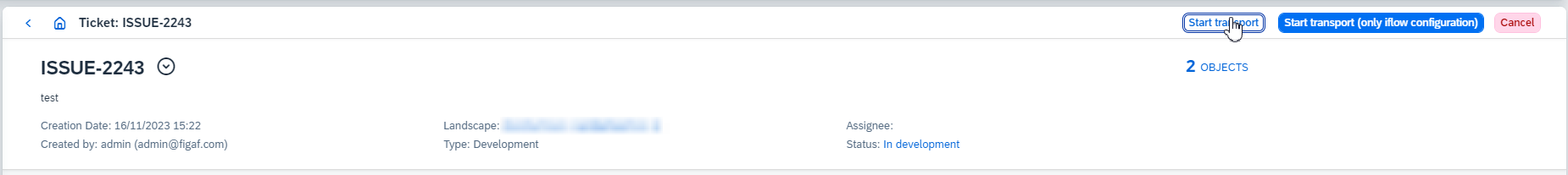

Click on Start transport button:
Go to Transports tab.
Go to transport page clicking on .

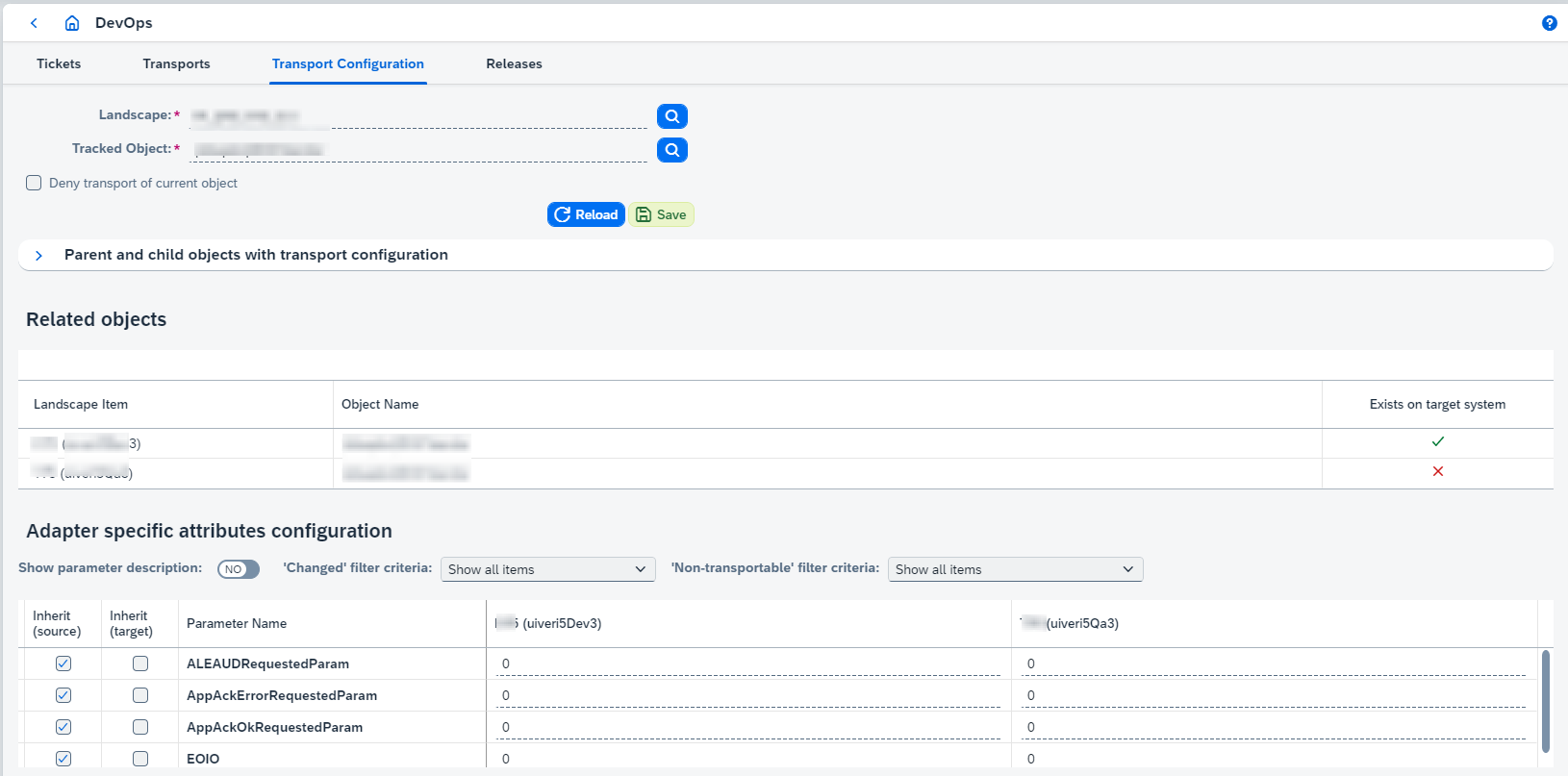

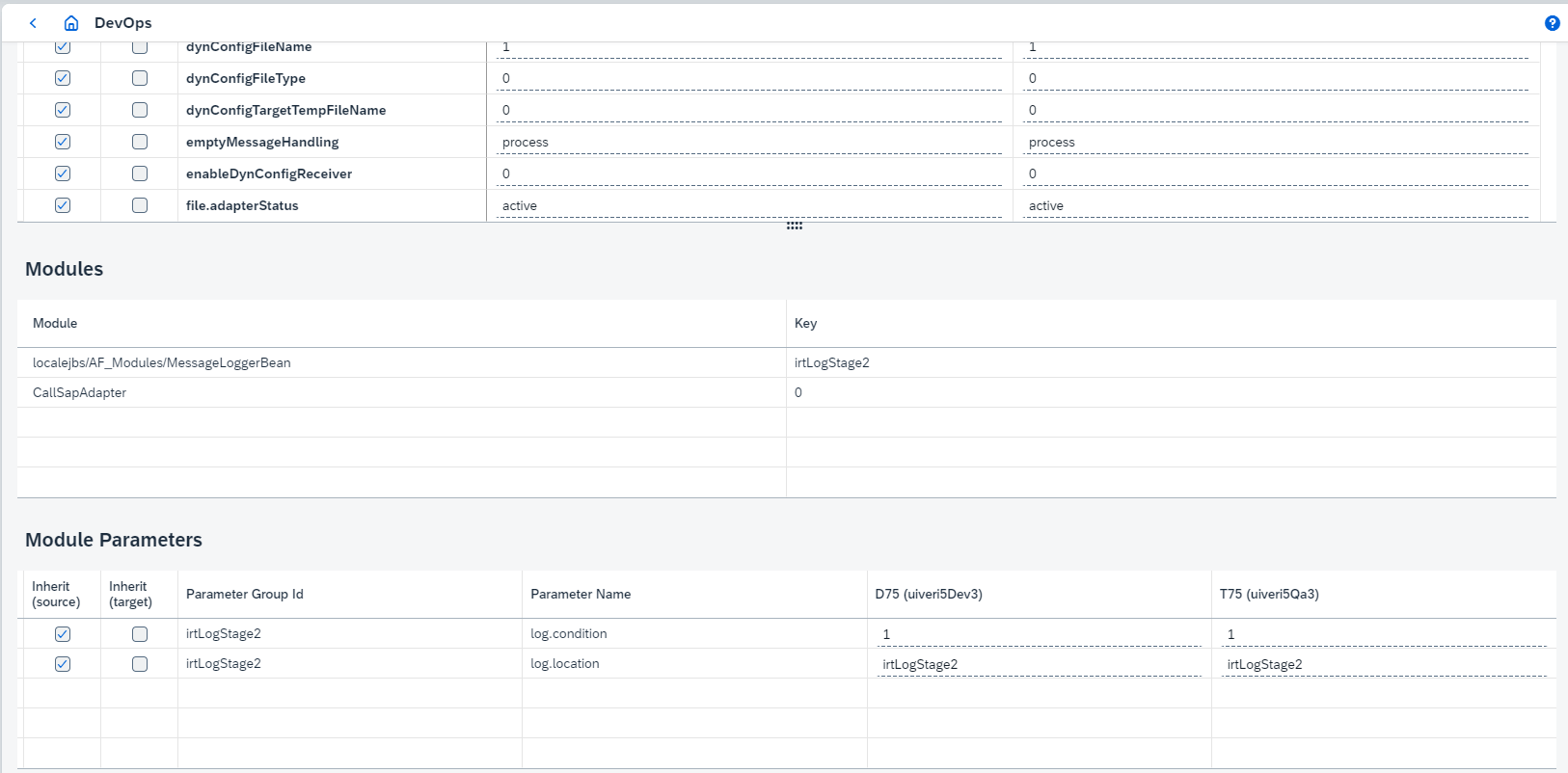

You can configure transport configuration (not for any object) clicking on button (see Transport Configuration page for details).
Import transports. When all transports linked with the ticket are imported, you can Resolve the ticket.

2. E2e development flow (CPI)

In this section we describe e2e development flow for CPI systems.

Go to Configuration → Landscapes page.

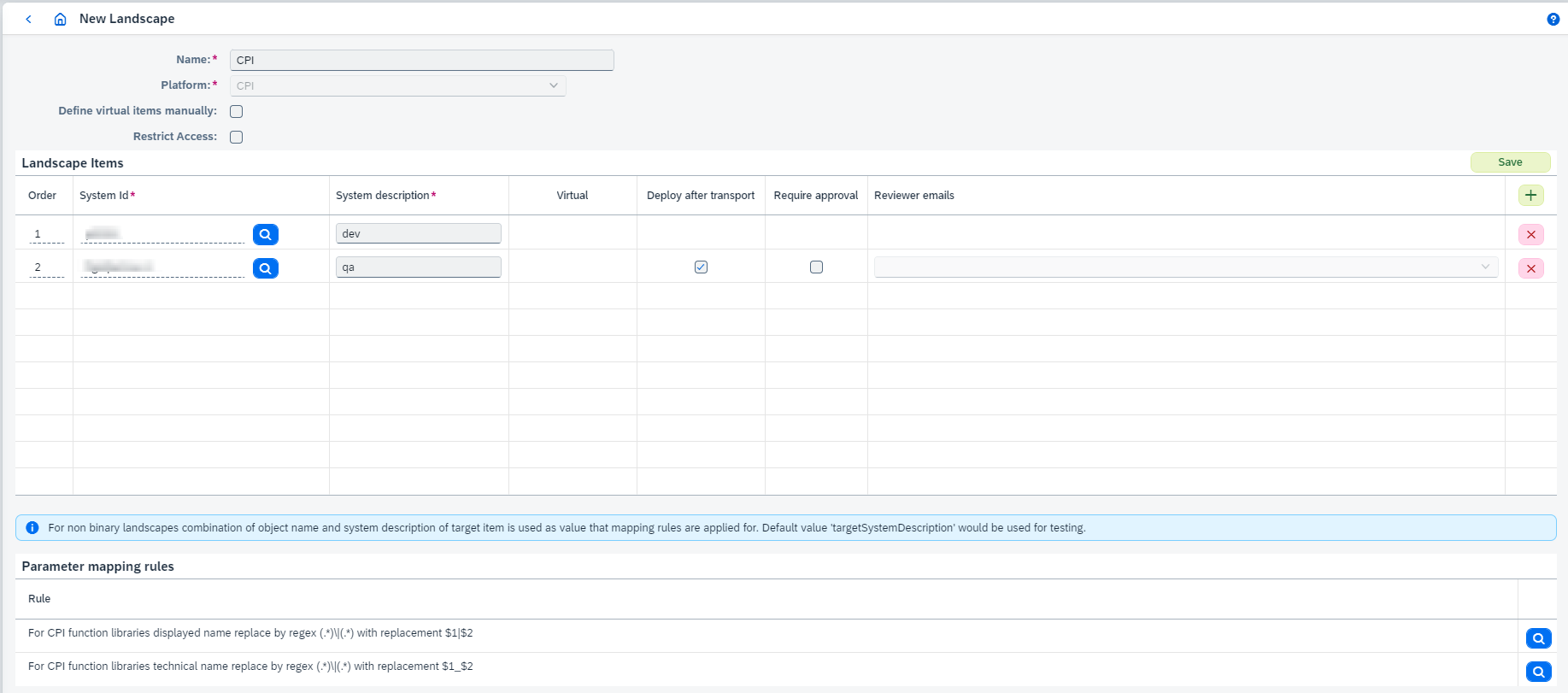

Create a landscape. Configure Name, Platform, and Landscape items, e.g.:
Synchronize source system (in our example it’s p0201 - dev).
Go to DevOps → Tickets page.
Create new development ticket with created landscape. It creates new ticket and opens its page.
Go to Tracked Objects tab.
Click on Attach Tracked Objects and select Iflows, Value Mappings, Script Collections, Message Mappings, Packages.
Select attached objects and click on Attach all dependent objects.
Click on Start transport button:
Go to Transports tab.
Go to transport page clicking on .
You can configure transport configuration (not for any object) clicking on button (see Transport Configuration page for details).
Import transports. When all transports linked with the ticket are imported, you can Resolve the ticket.

3. E2e development flow (Api Management)

In this section we describe e2e development flow for Api Management systems.

Go to Configuration → Landscapes page.

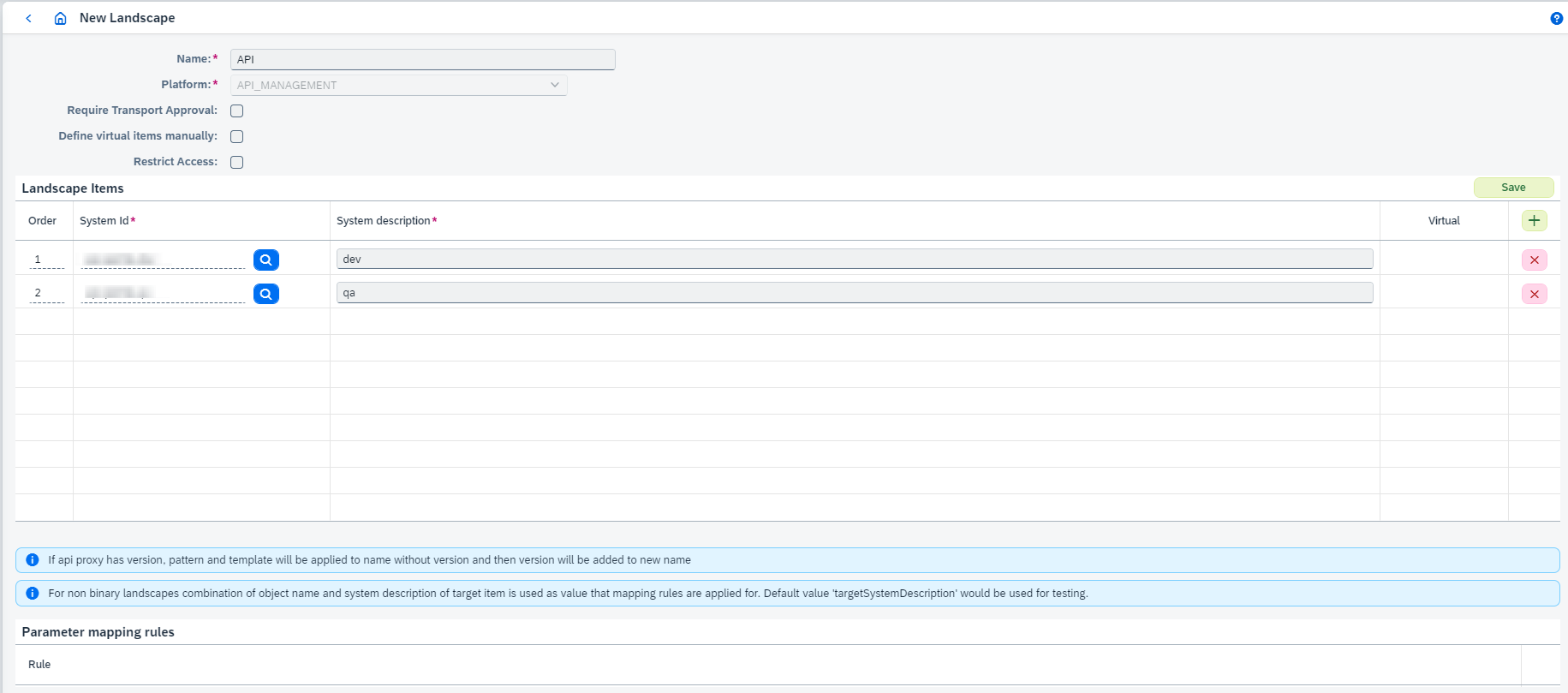

Create a landscape. Configure Name, Platform, and Landscape items, e.g.:
Synchronize source system (in our example it’s api-portal-dev - dev).
Go to DevOps → Tickets page.
Create new development ticket with created landscape. It creates new ticket and opens its page.
Go to Tracked Objects tab.
Click on Attach Tracked Objects and select Api Proxies, Key Value Maps, Encrypted Key Values Maps.
Select attached objects and click on Attach all dependent objects.
Click on Start transport button:
Go to Transports tab.
Go to transport page clicking on .
You can configure transport configuration (not for any object) clicking on button (see Transport Configuration page for details).
Import transports. When all transports linked with the ticket are imported, you can Resolve the ticket.

4. Transport of standard (Discover) content

Since 2606 Figaf Tool can transport SAP standard content (content from the SAP Discover catalog) through DevOps tickets. Standard content is transported so that it stays recognized by SAP as unmodified (SAP-to-SAP), preserving its version and status instead of becoming custom, editable content. This flow runs only for composite landscapes.

To be transported, standard content must be tracked and flagged as standard content during synchronization. You can transport a single object, the package only, or the package with all dependent objects.

During import of discovery content Figaf Tool follows the rules:

if the content doesn’t exist in the target system yet, the whole package is copied from Discover (a copy always contains all artifacts of the package). The copy uses the related mapping rule to build consistent names across the landscape (see Composite landscapes configuration);
if the content already exists in the target system, it isn’t updated.

Because the IFlow payload of standard content can’t be modified, the external IFlow configuration is applied after the IFlow is copied. It’s also possible to apply only the IFlow configuration without recreating the IFlow (Import only IFlow configuration).

Transport is blocked if the source system has a pending Discover update for the content.
Import is skipped with a warning if the source and target versions don’t match. Automatic update of already existing target content is not supported yet, so such an object is left not imported with a notification.
Rollback is not supported for configure-only objects managed by the Discovery registry. A warning is shown before import and for each configure-only item when a rollback runs.

5. Batch parameters update

Since of 2308 Figaf Tool supports a possibility to perform a mass update of transport configuration parameters (only for binary landscapes). The feature is supported for the following types and parameters:

System	Object Type	Supported parameters
PRO	Communication Channel	object parameters (description, adapter engine name), adapter specific attributes, module parameters. Name mapping parameters are not supported
CPI	Integration Flow	all from transport configuration
API Management	API Proxy and Key Value Map	all from transport configuration

System

Object Type

Supported parameters

PRO

Communication Channel

object parameters (description, adapter engine name), adapter specific attributes, module parameters. Name mapping parameters are not supported

CPI

Integration Flow

all from transport configuration

API Management

API Proxy and Key Value Map

all from transport configuration

To perform batch parameters update:

Add all objects that should be configured in batch way to one ticket and prepare transport.
On transport page click button Parameters report to download transport configuration parameters report.
Open downloaded csv in Excel or another tool to work with such type of document efficiently.

Modify items for the following columns in the report to take effect during mass update (update of other columns won’t be checked):

inherit from source
inherit from target (note that API Proxy type doesn’t support it, but it’s in the report with constant No)

new target value

Update of these columns should be consistent:

It’s not possible to configure both inherit from source and inherit from target together.
It’s not possible to enable inherit from target when target object doesn’t exist.

Once parameters in csv report are updated, go back to transport page and click on Batch parameters update button. Upload an updated csv file and click on Validate button. It will perform a parsing of uploaded result and validation on different levels (CSV file consistency and parameters consistency). Response of that operation has a list of detected changes that will be applied to transport configuration. Check list of changes to self-review at that moment of time. If result doesn’t have any fatal errors, it’s possible to perform a final update by clicking Submit button. Result can have warnings that don’t block Submit operation, but they inform about non-fatal issues.

Mass parameters update has the following input parameters at the background: landscape identifier and uploaded csv report. No information about current transport. Identification of objects which transport configuration will be updated is done by landscape and source object name. It means mass update operation doesn’t have any relation to a particular transport, it will always update actual transport configuration for objects in csv report.

It’s not possible to add new parameter or remove existing using the mass parameters update feature (it’s also not possible to do that from transport configuration page). Only parameters in CSV report will be processed during update, other parameters won’t be touched. It means, it doesn’t require to have absolutely all parameters in report.

6. Schedule import

Since of 2405 Figaf Tool supports a possibility to schedule import process execution.

To perform schedule import:

Schedule transports which are ready for import and linked with binary landscape either on transport page for each transport or Transports page for several transports.
Configure Scheduled transports execution time on related Landscape configuration page and irt.devops.scheduled-transports-execution-time-max-delay application property if default value isn’t suitable.

There are some notes and limitations:

Only independent transports (i.e. without shared objects) should be scheduled for import.
Scheduled import is executed on behalf user who scheduled it.
Batch import isn’t supported.
Split import isn’t supported.

7. E2e development flow (PRO, CTS+ transports)

If you work with a CTS+ Transport with Integration Directory objects, opened (not active) change list related to this transport must exist. Change lists should not be activated either automatically by PI engine or manually.

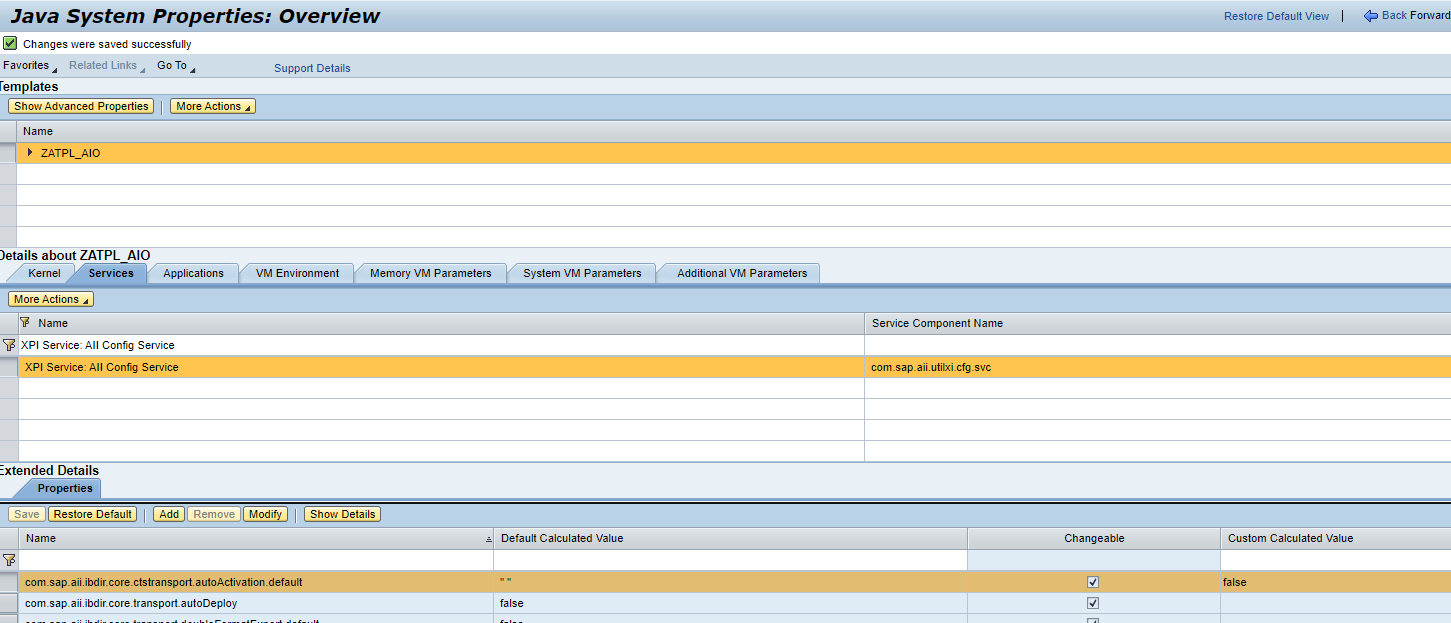

To avoid automated activation a flag com.sap.aii.ibdir.core.ctstransport.autoActivation.default must be set to false:
Entries which have been deleted from CTS+ transport request won’t be deleted from root CTS+ Transport entry in Figaf Tool. As Figaf Tool uses only information from PRO system (Integration Directory and Enterprise Service Repository EJB clients), it doesn’t have any information about whether a CTS transport request item is deleted or not. It’s possible to delete child CTS transport manually from Figaf Tool, but it will be created again during the next update, because PRO system still has this information in the transports registry.

Since the 2.8 release, Figaf Tool provides management functionality for File/CTS+ transports. It doesn’t process transport itself, but it helps with documentation, change tracking and configuration of transported objects. The following example in current section should show this feature in action. Further explanation of behavior, configuration and use cases can be found in the next sections.

In the example let’s have 2 systems in the landscape (configure Name, Platform, Lookup transport automatically during synchronization, and Landscape items):

DI3 - source system (dev)
DPO - target system (qa)

Some objects on DI3 should be transported to DPO. A CTS+ transport request DI3K90001S has been created and required objects have been added to it. Transport request has 2 items, one of them related to Integration Directory, another one to Enterprise Service Repository. Transport entries (export direction) can be browsed from Integration Directory builder and ESR builder on DI3:

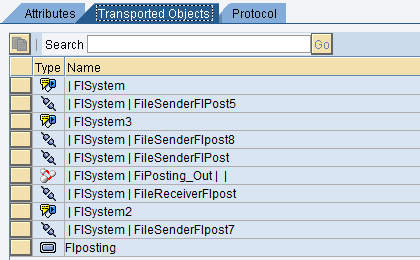

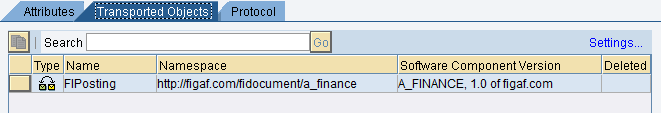

cts transport example int dir export di3

Now let’s create a ticket in Figaf Tool. The purpose of that ticket for now is just to aggregate all needed information and objects related to transport. The ticket is called FIposting scenario update. Initially the ticket is not linked with any objects. Go to Tracked Objects tab and click on Attach Tracked Objects. Select DI3K90001S|Export CTS+ transport and attach it to the ticket. Select added CTS transport and click on Attach all dependent objects.

All DI3 object versions related to transport (and supported in CTT) were attached to the ticket:

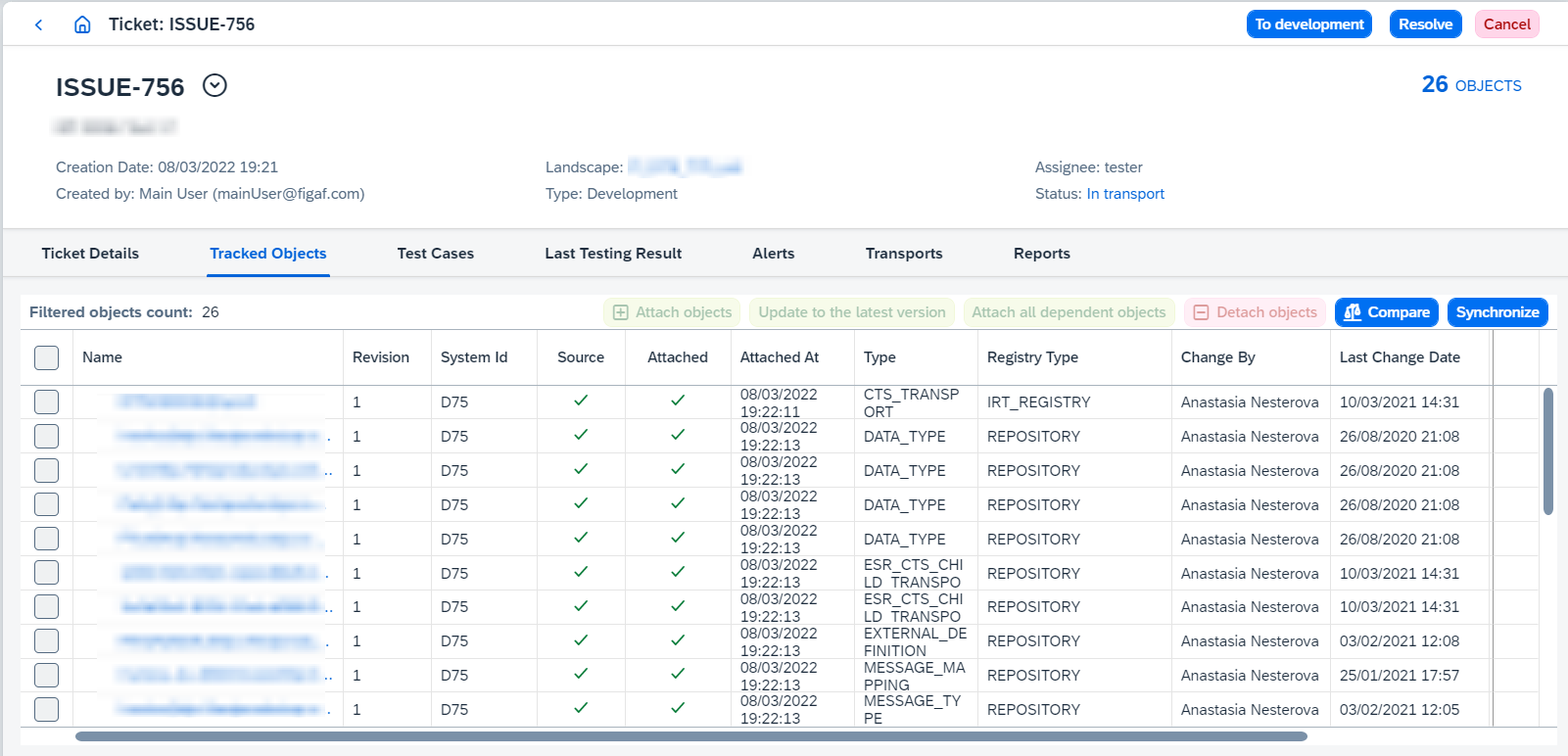

tracked objects added to ticket after transport synchronization

Then transport request has been imported on DPO. Automated changelist activation is disabled, so all imported object versions are kept in the changelist. The next step is to synchronize imported objects on DPO.

Transport request contains some communication channels. Some channel parameters a non-transportable, new objects in the import changelist doesn’t have them at that moment. Figaf Tool provides a possibility to configure imported objects (for no only communication channels configuration is supported) once they are synchronized in the Transport object. Transport configuration by default is disabled and won’t be applied during synchronization of imported objects. There are 3 possible cases for transport configuration parameters:

Parameter value should be taken from source object version and set on the target object. Default behavior for all non-password parameters.
Parameter value should be kept from target object version, so, it won’t be updated. Default behavior for all password parameters.
Parameter value should be configured manually for chosen target system.

For communication channels it’s possible to configure adapter specific attributes and module parameters.

Now let’s open each child transport object in Figaf Tool and process Check import. Once it’s done, changelist is activated, channels which have enabled transport configuration are enriched with new parameter values depending on chosen strategy, imported object versions are linked with transport object and added to the ticket.

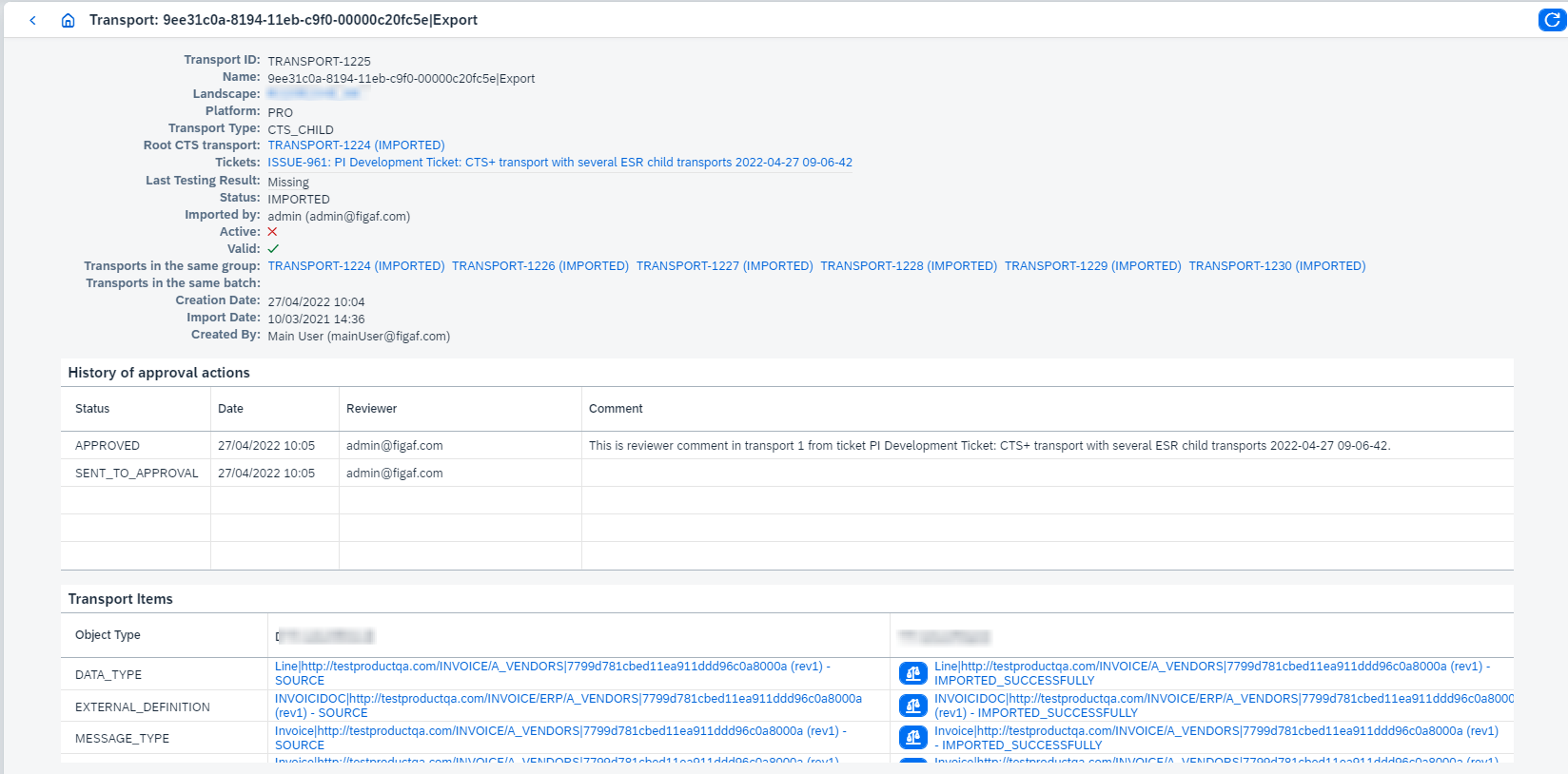

cts child transport item after import int dir

Changes between source and target objects can be browsed from Ticket’s Tracked Objects tab:

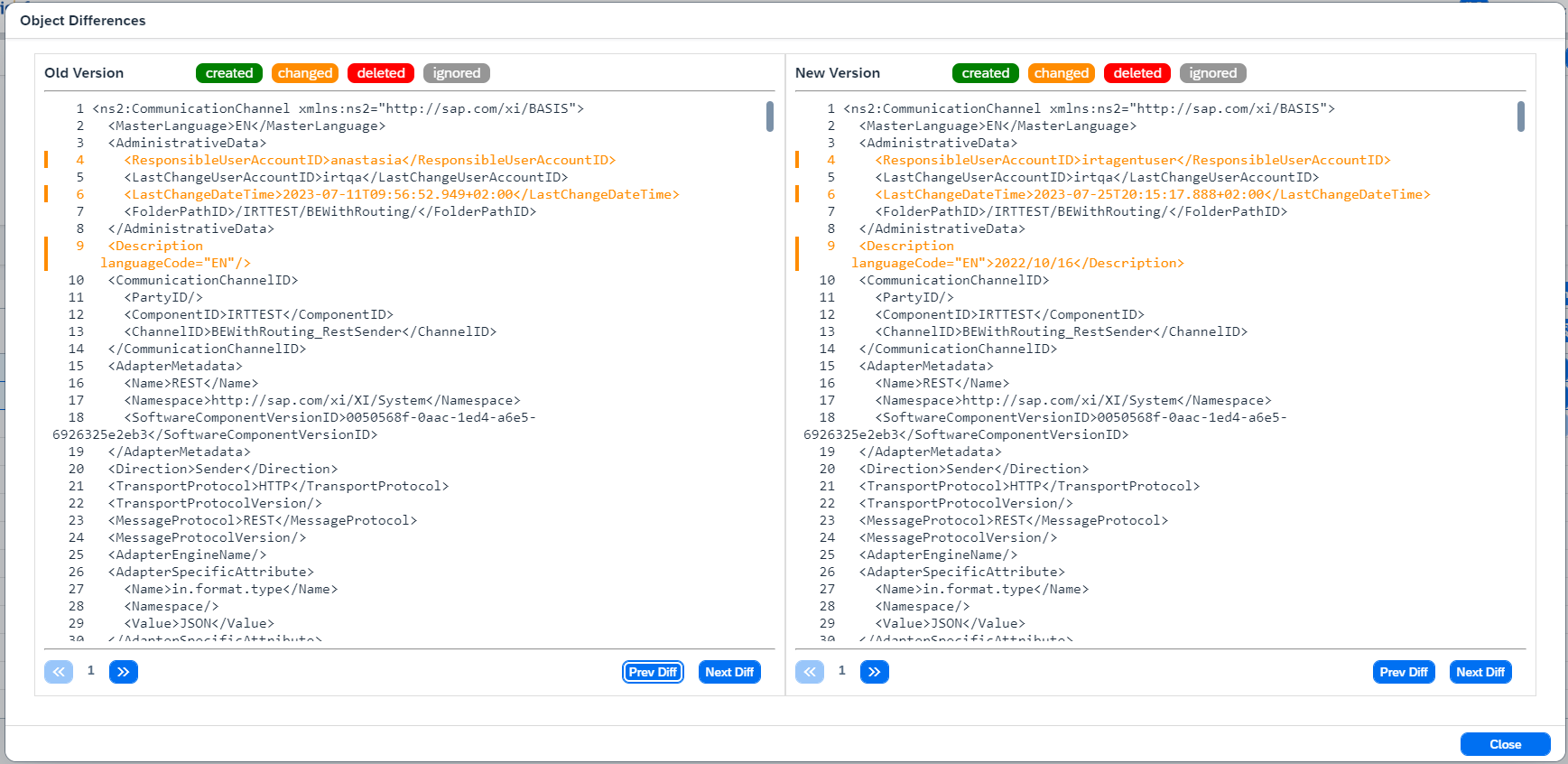

channel changes after applying transport configuration

Actually applied transport configuration has also been added to the ticket:

transport configuration tracked object in the ticket

The payload of transport configuration tracked object has full information about applied parameters:

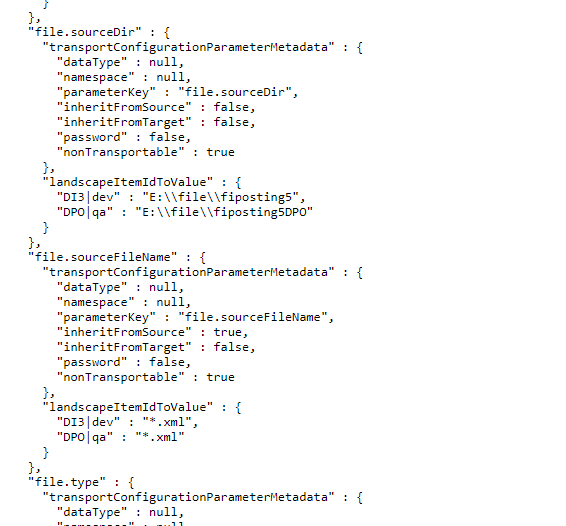

transport configuration tracked object in the ticket payload part

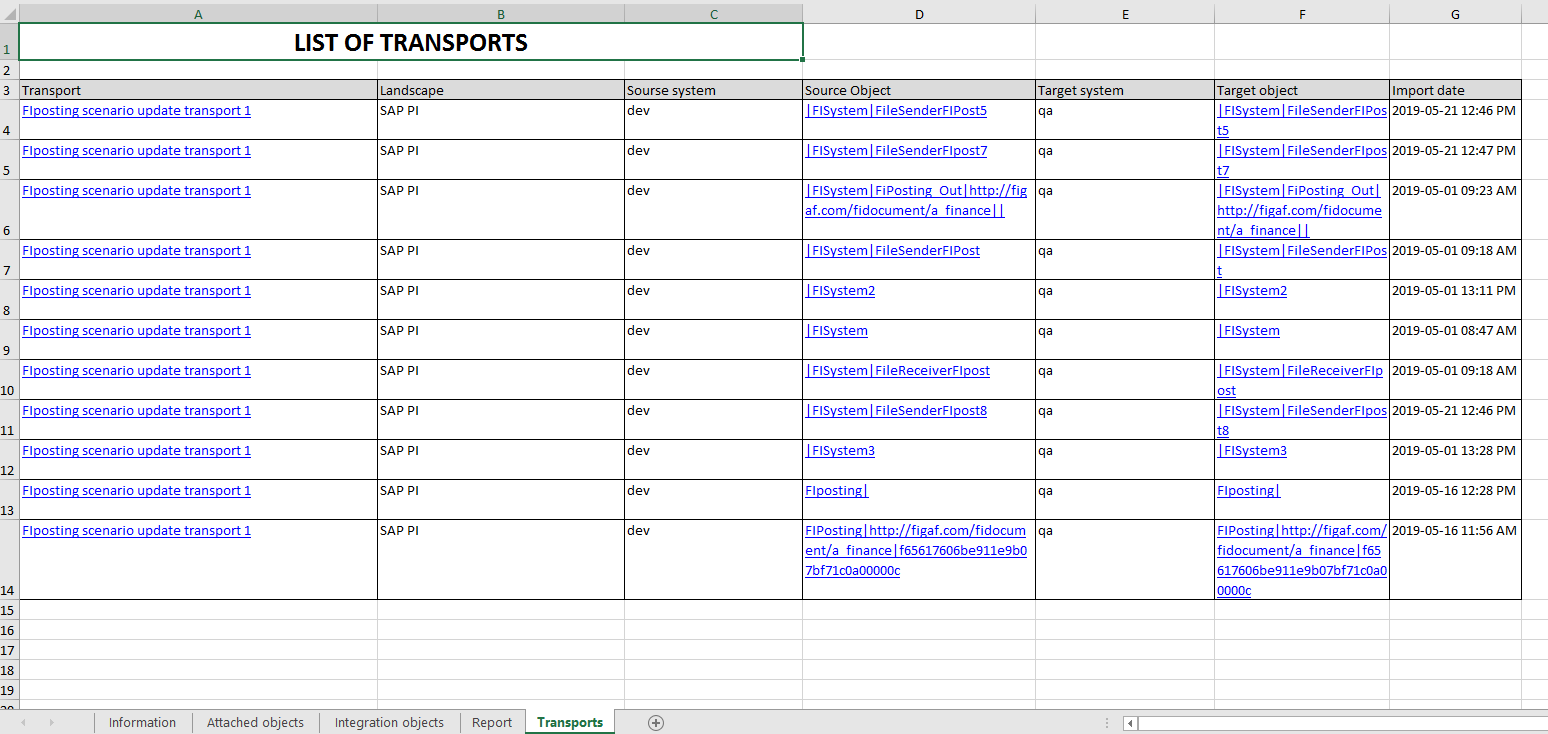

Finally, processed transport is documented in the ticket report:

To summarize, it needs to be said that current example just shows an isolated case with transport. In more complicated scenario ticket can be linked with integration objects and test cases which should be processed after transport. In CTS+ it’s possible to have multiple imports of the same transport request, and there is also a workaround for keeping transport request mutable during these imports. All these aspects automatically generate various use cases. Transports support in Figaf Tool has been designed to theoretically cover almost all of them, but it would be difficult to provide full set of examples. Especially because each company has its own workflow. In the further sections we are trying to explain the behavior of this feature, it should provide some information about how it fits your requirements. If you would like to have some additional cases supported, contact us by this email: [email protected].

8. E2e development flow (PRO, external transport management)

In this section we describe e2e development flow for PRO systems (external transport management is used).

You should prepare and import transport(s) on your systems.

Go to Configuration → Landscapes page.

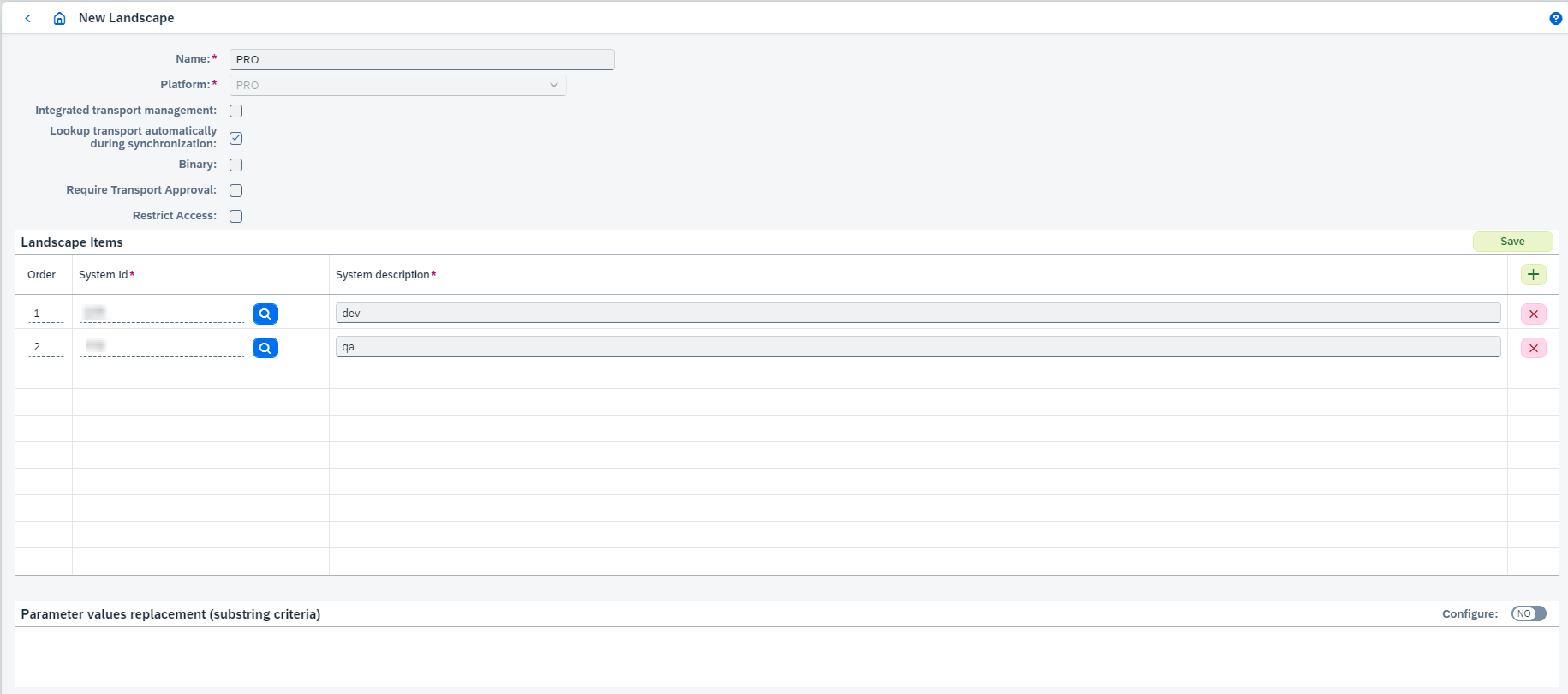

Create a landscape. Configure Name, Platform, Lookup transport automatically during synchronization, and Landscape items, e.g.:
Synchronize source system (in our example it’s D75 - dev).
Go to DevOps → Tickets page.
Create new development ticket with created landscape. It creates new ticket and opens its page.
Go to Tracked Objects tab.
Click on Attach Tracked Objects and select transport(s) prepared on your systems.
Select attached objects and click on Attach all dependent objects.
Click on Start transport button:
Go to Transports tab.
Synchronize target system (in our example it’s T75 - qa). You can do it from Tracked Objects tab (Synchronize button) or from Change Tracking Tool → Tracked Objects page.

When synchronization is finished, Figaf Tool will automatically check import for created transports. Once it’s done, transports statuses will be IMPORTED and you will be allowed to Resolve the ticket.
